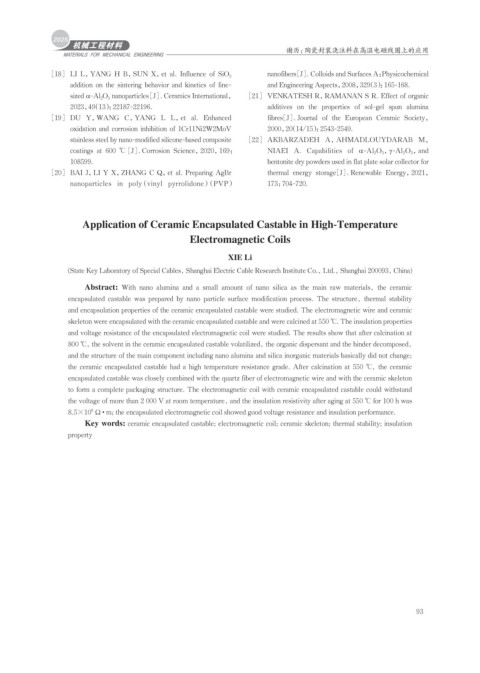

Page 101 - 机械工程材料2025年第三期

谢历：陶瓷封装浇注料在高温电磁线圈上的应用

［18］ LI L，YANG H B，SUN X，et al. Influence of SiO 2 nanofibers［J］. Colloids and Surfaces A：Physicochemical
addition on the sintering behavior and kinetics of fine- and Engineering Aspects，2008，329（3）：165-168.
sized α-Al 2 O 3 nanoparticles［J］. Ceramics International， ［21］ VENKATESH R，RAMANAN S R. Effect of organic

2023，49（13）：22187-22196. additives on the properties of sol-gel spun alumina
［19］ DU Y，WANG C，YANG L L，et al. Enhanced fibres［J］. Journal of the European Ceramic Society，

oxidation and corrosion inhibition of 1Cr11Ni2W2MoV 2000，20（14/15）：2543-2549.

stainless steel by nano-modified silicone-based composite ［22］ AKBARZADEH A，AHMADLOUYDARAB M，
coatings at 600 ℃［J］. Corrosion Science，2020，169： NIAEI A. Capabilities of α-Al 2 O 3 ，γ-Al 2 O 3 ，and
108599. bentonite dry powders used in flat plate solar collector for

［20］ BAI J，LI Y X，ZHANG C Q，et al. Preparing AgBr thermal energy storage［J］. Renewable Energy，2021，
nanoparticles in poly （vinyl pyrrolidone）（PVP） 173：704-720.

Application of Ceramic Encapsulated Castable in High-Temperature

Electromagnetic Coils

XIE Li

(State Key Laboratory of Special Cables, Shanghai Electric Cable Research Institute Co., Ltd., Shanghai 200093, China)

Abstract: With nano alumina and a small amount of nano silica as the main raw materials, the ceramic
encapsulated castable was prepared by nano particle surface modification process. The structure, thermal stability
and encapsulation properties of the ceramic encapsulated castable were studied. The electromagnetic wire and ceramic
skeleton were encapsulated with the ceramic encapsulated castable and were calcined at 550 ℃. The insulation properties
and voltage resistance of the encapsulated electromagnetic coil were studied. The results show that after calcination at
800 ℃, the solvent in the ceramic encapsulated castable volatilized, the organic dispersant and the binder decomposed,
and the structure of the main component including nano alumina and silica inorganic materials basically did not change;
the ceramic encapsulated castable had a high temperature resistance grade. After calcination at 550 ℃, the ceramic
encapsulated castable was closely combined with the quartz fiber of electromagnetic wire and with the ceramic skeleton
to form a complete packaging structure. The electromagnetic coil with ceramic encapsulated castable could withstand
the voltage of more than 2 000 V at room temperature, and the insulation resistivity after aging at 550 ℃ for 100 h was
8
8.5×10 Ω · m; the encapsulated electromagnetic coil showed good voltage resistance and insulation performance.
Key words: ceramic encapsulated castable; electromagnetic coil; ceramic skeleton; thermal stability; insulation
property
