Page 68 - 机械工程材料2024年第十一期

崔 璐，等： QT1100连续油管钢的抗液固两相流冲蚀性能

saline‒quartz slurry［J］. Materials and Corrosion，2011， ［17］ 孙丽丽，王尊策，孙振旭，等. 套管钢在水力喷砂压裂

62（11）：1051-1060. 液中的冲刷腐蚀行为研究［J］. 化工机械，2015，42（2）：

［14］ MOLINA N，WALCZAK M，KALBARCZYK M，et 176-179.
al. Erosion under turbulent slurry flow：Effect of particle SUN L L，WANG Z C，SUN Z X，et al. Erosion‒
size in determining impact velocity and wear correlation corrosion behavior of casing steel in hydraulic fracturing
by inverse analysis［J］. Wear，2021，474/475：203651. fluid［J］. Chemical Engineering & Machinery，2015，42
［15］ 崔璐，康文泉，吴鹏，等. 多相高速流动环境中13Cr不 （2）：176-179.

锈钢冲刷腐蚀特性［J］. 西安石油大学学报 （自然科学 ［18］ 徐洪敏，杨燕，陈虎，等. 砂粒浓度对X80管线钢冲刷

版），2020，35（3）：92-96. 腐蚀行为的影响［J］. 油气田地面工程，2018，37（7）：
CUI L，KANG W Q，WU P，et al. Study on erosion 74-77.
corrosion of 13Cr stainless steel under action of high- XU H M，YANG Y，CHEN H，et al. Effects of sand

speed multiphase flow［J］. Journal of Xi'an Shiyou grain concentration on erosion‒corrosion of X80 pipeline
University （Natural Science Edition），2020，35（3）：92- steel［J］. Oil‒Gas Field Surface Engineering，2018，37（7）：
96. 74-77.
［16］ 赵彦琳，杨少帅，姚军. 304不锈钢两相流冲蚀腐蚀的 ［19］ 姜志超， 杨燕，彭浩平，等. X80钢在不同砂粒粒径下的

实验研究［J］. 北京航空航天大学学报，2019，45（8）： 多相流中的冲刷腐蚀行为［J］. 油气田地面工程，2018，
1504-1511. 37（11）：76-79.
ZHAO Y L，YANG S S，YAO J. Experimental study JIANG Z C，YANG Y，PENG H P，et al. Erosion
on erosion-corrosion of 304 stainless steel under two- corrosion behavior of X80 steel in multiphase flow with

phase flow condition［J］. Journal of Beijing University of different sand particle sizes［J］. Oil‒Gas Field Surface
Aeronautics and Astronautics，2019，45（8）：1504-1511. Engineering，2018，37（11）：76-79.

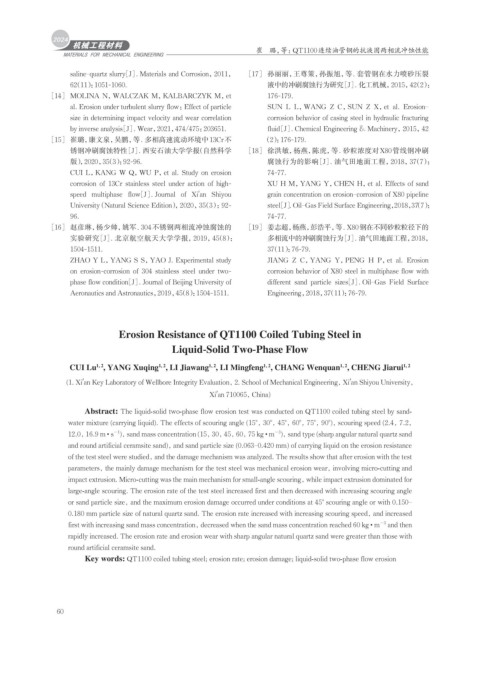

Erosion Resistance of QT1100 Coiled Tubing Steel in
Liquid-Solid Two-Phase Flow

CUI Lu , YANG Xuqing , LI Jiawang , LI Mingfeng , CHANG Wenquan , CHENG Jiarui 1, 2
1, 2
1, 2
1, 2
1, 2
1, 2
(1. Xi'an Key Laboratory of Wellbore Integrity Evaluation, 2. School of Mechanical Engineering, Xi'an Shiyou University,
Xi'an 710065, China)
Abstract: The liquid-solid two-phase flow erosion test was conducted on QT1100 coiled tubing steel by sand-
water mixture (carrying liquid). The effects of scouring angle (15°, 30°, 45°, 60°, 75°, 90°), scouring speed (2.4, 7.2,
−1
−3
12.0, 16.9 m · s ), sand mass concentration (15, 30, 45, 60, 75 kg · m ), sand type (sharp angular natural quartz sand
and round artificial ceramsite sand), and sand particle size (0.063‒0.420 mm) of carrying liquid on the erosion resistance
of the test steel were studied, and the damage mechanism was analyzed. The results show that after erosion with the test
parameters, the mainly damage mechanism for the test steel was mechanical erosion wear, involving micro-cutting and
impact extrusion. Micro-cutting was the main mechanism for small-angle scouring, while impact extrusion dominated for
large-angle scouring. The erosion rate of the test steel increased first and then decreased with increasing scouring angle
or sand particle size, and the maximum erosion damage occurred under conditions at 45° scouring angle or with 0.150‒
0.180 mm particle size of natural quartz sand. The erosion rate increased with increasing scouring speed, and increased
−3
first with increasing sand mass concentration, decreased when the sand mass concentration reached 60 kg · m and then
rapidly increased. The erosion rate and erosion wear with sharp angular natural quartz sand were greater than those with
round artificial ceramsite sand.
Key words: QT1100 coiled tubing steel; erosion rate; erosion damage; liquid-solid two-phase flow erosion

60
